Category : Plastic materials ,
Company : Engineering Home

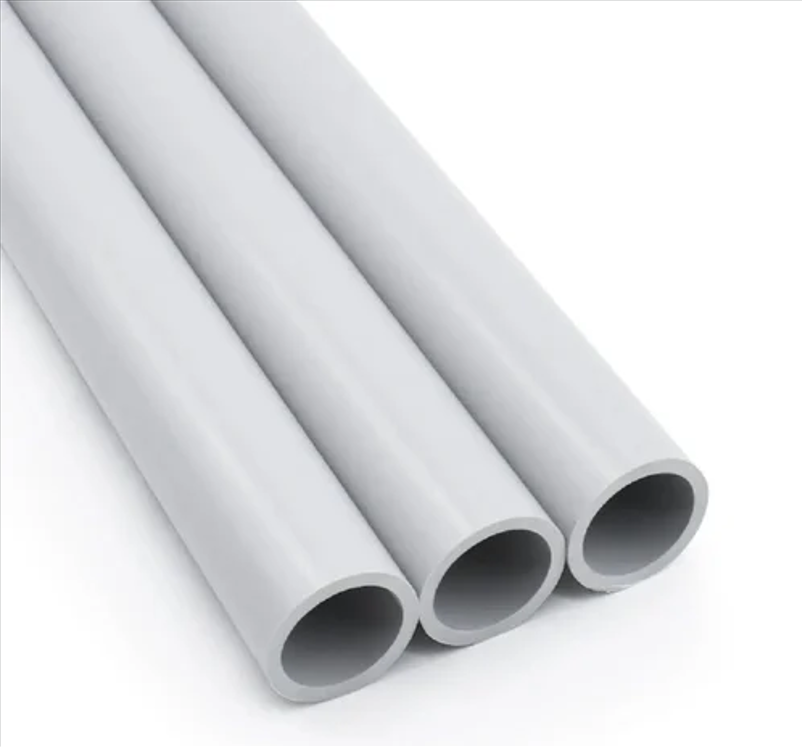

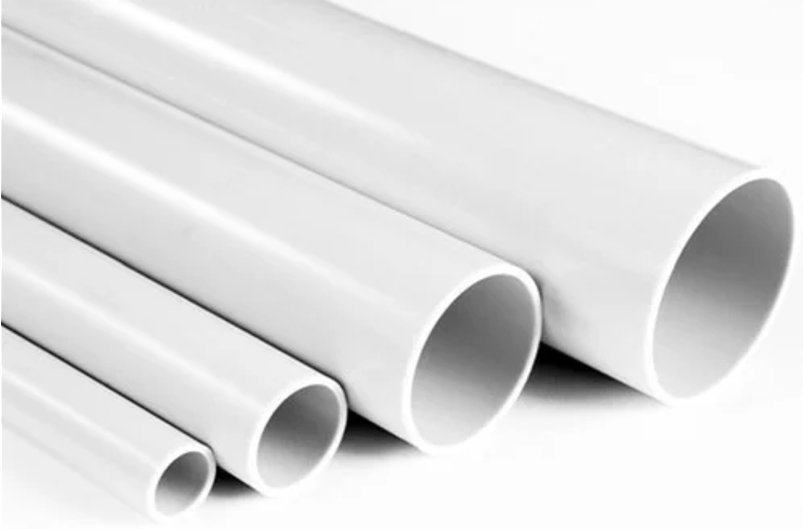

Product Description (Standard sizes)
Light Gauge (320 N)
IEC CODE 2221
| Ref no. | Outer diameter (mm) | Wall thickness (mm) | Std. Pack | List price L.E/m | List price L.E/pack |
| 4120 | 20 | 1.3 | 34x3m | 0.76 | 77.52 |
| 4125 | 25 | 1.45 | 20x3m | 1.14 | 68.4 |
| 4132 | 32 | 1.7 | 15x3m | 1.47 | 66.15 |
| 4140 | 40 | 2.1 | 10x3m | 2.23 | 66.9 |
| 4150 | 50 | 2.45 | 5x3m | 3.27 | 49.05 |
| 4163 | 63 | 3 | 5x3m | 5 | 75 |
Medium Gauge (750 N)
IEC CODE 3321
| Ref no. | Outer diameter (mm) | Wall thickness (mm) | Std. Pack | List price L.E/m | List price L.E/pack |
| 4220 | 20 | 1.55 | 34x3m | 0.89 | 90.78 |
| 4225 | 25 | 1.8 | 20x3m | 1.39 | 83.4 |
| 4232 | 32 | 2.1 | 15x3m | 1.8 | 81 |
| 4240 | 40 | 2.3 | 10x3m | 2.43 | 72.9 |
| 4250 | 50 | 2.85 | 5x3m | 3.77 | 56.55 |
Heavy Gauge (1250 N)
IEC CODE 4421
| Ref no. | Outer diameter (mm) | Wall thickness (mm) | Std. Pack | List price L.E/m | List price L.E/pack |
| 4320/1 | 20 | 1.8 | 34x3m | 1.03 | 105.06 |
| 4320 | 20 | 2.1 | 34x3m | 1.18 | 120.36 |
| 4325/1 | 25 | 1.95 | 20x3m | 1.45 | 87 |
| 4325 | 25 | 2.2 | 20x3m | 1.68 | 100.8 |
| 4332 | 32 | 2.7 | 15x3m | 2.27 | 102.15 |
| 4340 | 40 | 2.8 | 10x3m | 2.91 | 87.3 |
| 4350 | 50 | 3.4 | 5x3m | 4.46 | 66.9 |
(Additional sizes)
Additional 1
|
|
|
|
|
| ||||||
|
|
|
|
|
| ||||||
|
|
|
|
|
| ||||||
|
|
|
|
|
| ||||||
|
|
|
|
|
| ||||||
|
|
|
|
|
| ||||||
|
|
|
|
|
|
Additional 2
| Ref no. | Outer diameter (mm) | Wall thickness (mm) | Std. Pack | List price L.E/m | List price L.E/pack |
| 3120 | 20 | 1.5 | 34x3m | 0.73 | 74.46 |
| 3125 | 25 | 1.5 | 20x3m | 1 | 60 |
| 3132 | 32 | 1.8 | 15x3m | 1.33 | 59.85 |
| 3140 | 40 | 1.9 | 10x3m | 1.74 | 52.2 |
| 3150 | 50 | 2.4 | 5x3m | 2.73 | 40.95 |
| 3163 | 63 | 3 | 5x3m | 4.15 | 62.2 |
