Product Description Product Overview
◆ Application Type: Liquid Tight Fittings
◆ Material: Zinc
◆ Finish: Polished
◆ Trade Size: 3/8”, 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”, 3”, 4” and 6”
◆ UL File Number: E472251
Product Details

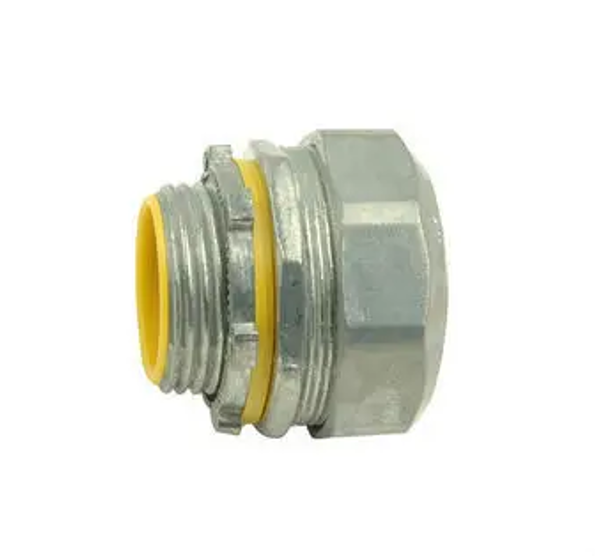

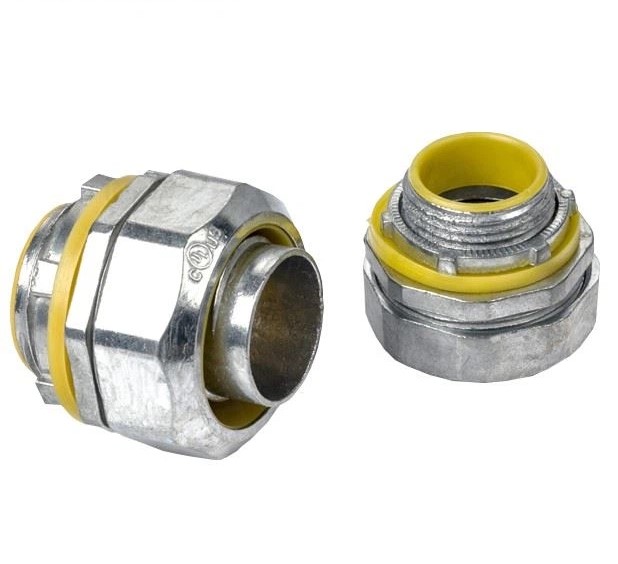

The straight liquid-tight connector is used to terminate and seal metallic and non-metallic “Type B” liquid-tight conduit to a steel outlet box or any other metallic enclosure. The liquid-tight connector has NPT threads and a gasket. The liquid-tight straight connector is suitable for use in Class 1 Division 2, Class II, Divisions 1 & 2; and Class III, Divisions 1 & 2 per NEC 501.30 (B). The liquid-tight connector can be used with a tapered threaded entry or an unthreaded knockout using the provided sealing washer and conduit locknut.
Generally speaking, we provide liquid-tight connectors with throat uninsulated. If you need an insulated throat, please let us know when placing orders. On the other hand, please specify blue, yellow, or any other color for the plastic part of the liquid tight connectors.
In some cases, you may order a 6" liquid tight connector that is not a UL-listed product. The minimum order quantity of 100 pieces is required for this special size.
Reference and Packing
| CAT# | SIZE |
| LTC-15 | 1/2'' |
| LTC-20 | 3/4'' |
| LTC-25 | 1'' |
| LTC-32 | 1-1/4'' |
| LTC-38 | 1-1/2'' |
| LTC-50 | 2'' |
| LTC-64 | 2-1/2'' |
| LTC-75 | 3'' |
| LTC-100 | 4'' |
